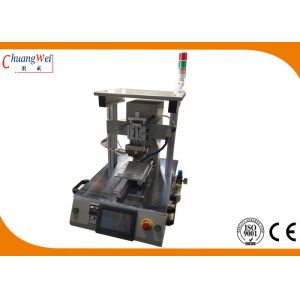

Operate Foolproof Automatic PCB Soldering Machine For Fpc / Pcb
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board).
2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!
3. bonding soldering HSC to PCB&HSC to LCD
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. Electronic component won't short circuit
Specification:
| Model | CWHP-1A |
| Tolerance of Pressing | 0.05MPA |
| Time of pressing | 0-99s |
| Tolerance of Temp | +2°C |
| Temperature setup | 0-400°C |
| Working area (mm) | 110*150 |
| Air pressing (MPa) | 0.5~0.7 |
| Size (MM) | 500*750*910 |
| Weight (Kg) | 90 |
| Guarantee | 1 Year |
| Delivery | 1 Day |
| Min. Order | 1 Set |
| Ability | 1000 Sets |
Feature:
1. Closed Loop PID temperature control with visible LED display
2. LCD display programmable pressure switch for precise force control
3. Each heating cycle is triggered by a real time pressure sensor
4. Floating thermode ensures consistent pressure and heat transfer
between the thermode head and the parts to be joined
5. Silicon rubber can be fitted in bonding Heat Seal Connectors
between LCD and PCB
6. Standard workpiece holder is mounted on a linear guideway and
designed to allow for easy changeover and repeatable operation
7. Parts registration is adjusted by micrometer and secured by vacuum
lock
8. Optional CCD system for fine pitch component.
Our Advantage :
1. CWVC-1 Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying.
